A very brief introduction to Web Scraping
Basic concepts and process
By Carlos A. Toruño P.
November 10, 2022
As a data analyst and an economist, there are times in which you would have to go out of your comfort zone and search for the data needed for your research or analysis. And as it happens, there is no better data pool than the internet. There, you have an immense ocean of information at your disposal and the digital world in which we live makes it possible to access certain data in a single click. However, the amount of information that is compiled and organized in a way for you to use right away, is just a small fraction of all the information available out there.
To answer some questions, it is necessary to use alternative tools to gather this scatter and unstructured information. One of such tools is Web Scraping. In this series of articles, I will cover the basics of web scraping, what is it about and how to apply it using some of the Python libraries available.
What is Web Scraping?
In a nutshell, Web Scraping is the process in which we collect information from the web with the objective to export it as an organized data structure that would fit our needs. Under this definition, manual processes of coping and pasting the information from the web would be considered as web scraping. However, given the complexity and, most importantly, the huge volumes of the information that we would usually like to extract, web scraping is most likely to be done in an automatic fashion. For this, it is common to program an automatic web scrapper using any of the programming languages available out there such as Python, R or JavaScript.
In some specific (and wonderful) cases, websites allow you to access their data through an Application Programming Interface or, most commonly refer to as API. This is a set of definitions and protocols that allow the communication between two software applications through a set of previously defined rules. In our specific case, we are talking about a formal communication channel between our “scrapper” and the website’s server to automatically download their data. Websites like Twitter and Google allow you to access their massive amount of information through an API. This process is the fastest way to access the data on the internet. Nevertheless, most of the time you won’t be enjoying of this sort of hospitality from the web and you will have to program your own “bot” to scrap the information that you want.
It is considered part of the Online Étiquette to always check if the website you want to extract the information from has a public API for this use, instead of programming a scrapper that can crash the host server. You might be wondering why not all websites set up an API for this. Well, maybe they haven’t thought about it or maybe they don’t want you to obtain this information in the first place. This raises a very important question for us all.
Is Web Scraping legal?
Due to the increasing popularity and use of web scraping, along with some legal cases, many people asks: Is web scraping legal? In reality, this question might be difficult to access and it would depend on the geographical/institutional/legal grounds where it is asked and, most importantly, I’m no lawyer at all. However, there is a few point that we should always take into account.
For example, what kind of data are we extracting from the web? It is important that we make sure that we are extracting Publicly Available Data. Information is considered publicly available when…
- The user has made the data public
- No account or login information is required to access the data
- The robots.txt file does not prohibit the extraction of the information we are targeting.
While the first two points do not require further explanation, the third one might have left you wondering… robots???
A robots.txt file is a set of rules that automated bots should follow while crawling and scraping the information in the website. You can check the robots.txt file from Wikipedia as an example. Please notice how they warn about way too fast spiders. PromptCloud.com has a straightforward article on how to read and respect robots.txt files.
For more information about the legality of web scraping, you can check this short video from ParseHub.
How does Web Scraping works?
As we mentioned before, Web Scraping is the process of extracting information from the web. However, in order to extract it, you would first have to search for this data even within a single website. Therefore, we usually talk about making use of a web crawler and a web scraper.
As explained in this article by Zyte,
A web crawler, which we generally call a “spider,” is an artificial intelligence that browses the internet to index and search for content by following links and exploring websites.
On the other hand,
A web scraper is a specialized tool designed to accurately and quickly extract data from a specific web page.
In other words, while the crawler targets URLs to pass to the scraper, the scraper makes use of tools such as XPaths, CSS selectors and/or regular expressions to target chunks of code within the HTML code of a website and create an organized data set for your desired use. Please note that sometimes, a crawler might behave just like a scraper given that it might have to make use of the same tools to extract the desire URLs. This is why people often refers to scrapers and crawlers as interchangeably terms (but they are not).

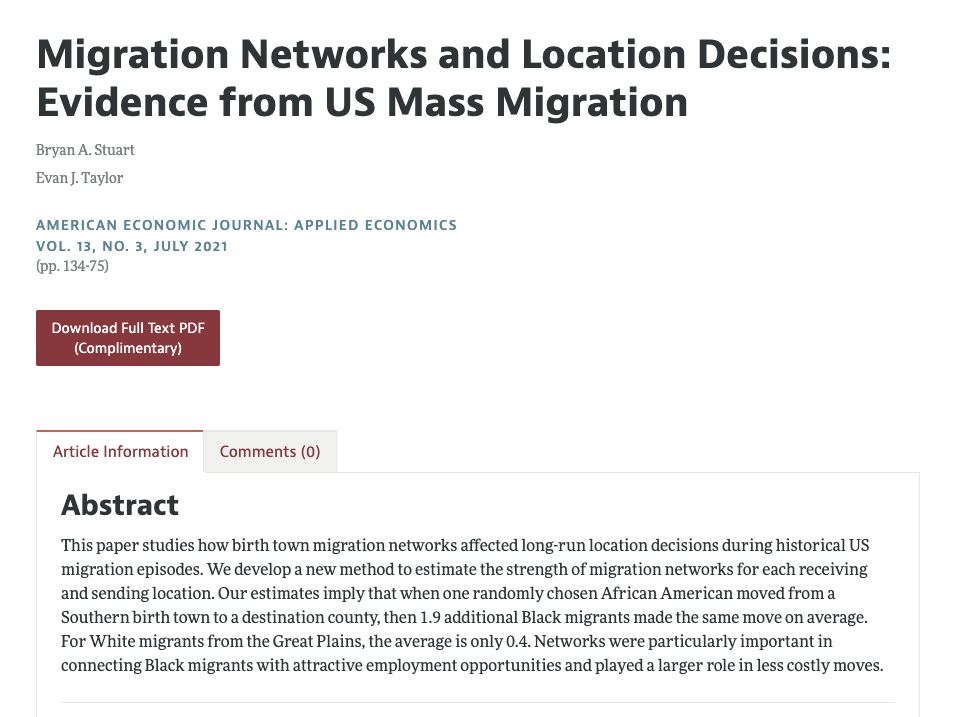

Once that you know the URLs of the pages that you want to scrap, you request (and download) the HTML code of those pages, and then you locate the information that you would like extract. For example, let’s say that we would like to extract the public information (authors, title, publication date, etc) of the following article from the American Economic Association:

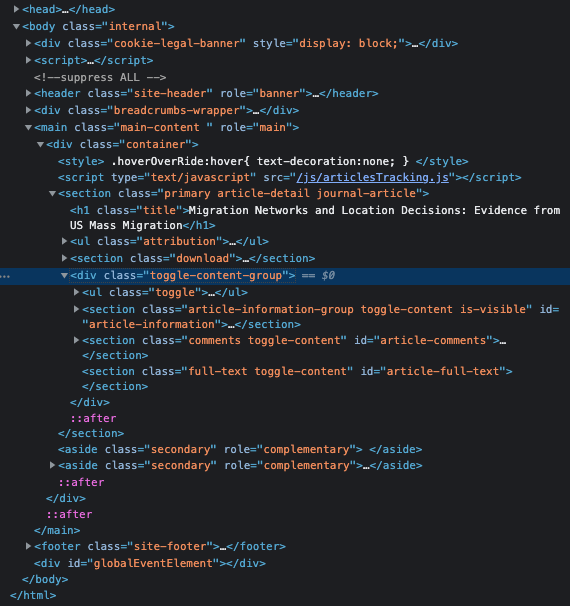

If you were to right-click anywhere on the website and chose to inspect the HTML elements, you will see that the HTML code of this specific page looks something like this:

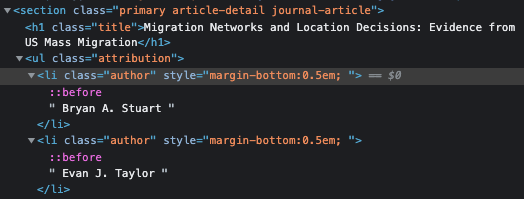

As you can see, the HTML code of the website looks something like a tree with all those nested lines of code. And somewhere within those branches, we will find the information that we want. For example, if we go deep enough in those branches, we can locate the title and the names of the authors like this:
Having located the elements that we want, we can make use of the tree structure of the HTML to reach this element. As you can see in the image above, the title of the article is represented in the following way:
<h1 class = "title"> Migration Networks and Location Decisions: Evidence from US Mass Migration </h1>
In other words, the title is wrapped within a tag element <h1>
with class = "title"
. Additionally, if we inspect the whole HTML tree, we can see that this element is located in the following location:
html > body > main > div > section > h1
The above is sort of a route or path that we can follow through the branches (or children) of the HTML code in order to reach the element that we need. According to this route, we first need to locate the <body>
tag, then go deeper in the tree and through the <main>
tag and follow the path all the way until we reach the <h1>
tag that we are looking for. At this point, you might think that this is a very exhausting way to locate and extract a single piece of text.
Fortunately, as in real life, there are many ways to refer to where an element is located within the HTML code. And, depending on the structure of the code, there are methods that allow you to take shortcuts to your desired element. There are many methods available, however, the most popular ones are the so call XPaths and CSS Selectors.

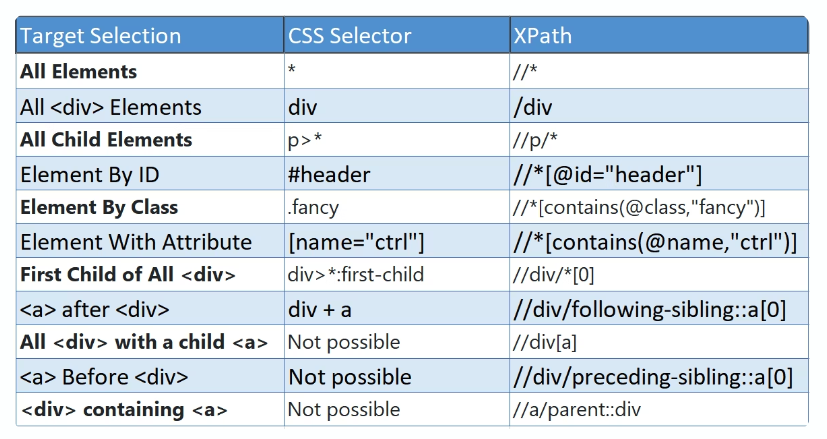

CSS Selectors vs XPath
Sadly, I won’t go in depth with these type of locators in this article. Nonetheless, I will borrow some definitions from this excellent article from Oxylabs and then I will explain the very basics of these locators.
CSS, or Cascading Style Sheet, is a set of components and rules that inform the browser which HTML elements have to be located and applied with CSS properties.
As we know, HTML is the standard language in which documents are designed for their diffusion in the web. As a markup language, its beauty comes mainly from its simplicity. HTML relies on the use of style sheets that will apply formatting and all the stunning visuals that we expect from the web to the elements present in the HTML code. Today, the standard relies on the use of Cascading Style Sheet or CSS.
HTML is rarely served without CSS. If there is a need to change the appearance of any HTML element, the most common way to do that is by applying a style to it – it can be as simple as changing text color, or it can be more complex if you are using animation.
Continuing with our example on how to extract the title of the article, if we take another look to how does this title appears in the web, we can appreciate that it has some unique formatting that no other element in the page has. It has a certain font size, it uses a certain font family, a certain font color, etc.
These characteristics are not explicitly expressed in the <h1>
element. But rather, the developers decided to assign these characteristics to ALL elements that have a class = "title"
. Given that no other element has the class “title” in the entire code, you can call and refer to the <h1>
element that we are interested in, by using its class as a CSS Selector: .title
.
As you will see, you can also assign style and formatting not only through classes, but also identifiers, attributes, positioning, among others. In the same manner, you can also select this same element by calling its XML Path, or XPath.
XPath is a language that takes advantage of the hierarchical structure of a XML document in order to build up expressions that can go through the document and select pre-defined parts of it.
The idea behind XPath is to give a sort of navigational system that can go through the document and find an element by either their hierarchical position or through a matching mechanism.
For example, if we wanted to select <h1>
by taking advantage that no other element has the title class, we would use the following XPath: \\*[contains(@class, 'title')]
. As you can see, we are not locating the element by their hierarchical position as we did at the beginning but making use of a matching pattern that works similarly to regular expressions.
The previous calls work because the element that we are searching for is the only element in the entire HTML code that uses the class = "title"
. However, if there were more elements that used this same class, things would be a bit more complicated. In the end, you will have to rely on different characteristics to refer to a certain element in a website, such as their style class, their identifiers, their attributes, their position, their visible text, among others.
Most of the programming of a web scrapper involves the correct identification and selection of the elements in the HTML code. The tricky part is that every website is different in a unique manner, and what works for one website, might not work for another.
